| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD4999-49999/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Feature: | Gantry Crane | Condition: | New |
|---|---|---|---|
| Rated Loading Capacity: | 5t-10t-16t-20t | Span: | 12-30m |
| Lifting Height: | 3~20M | Lifting Mechanism: | Hoist Trolley |
| Power Source: | 220V-380V-415V-440V 50/60Hz | Control Method: | Cabin Control/wire Rope Remote Control |
| Working Duty: | A3-A5 | Certificate: | SIO, CE |
| Color: | Red ,Yellow Or On Request | Lifting Speed: | 0.1 ~ 12.5 M/min |
| Type: | Hoist Single Girder Bridge Crane | ||
| High Light: | 5 ton Movable Gantry Crane,Outdoor Movable Gantry Crane,12.5 M/min movable gantry crane |
||

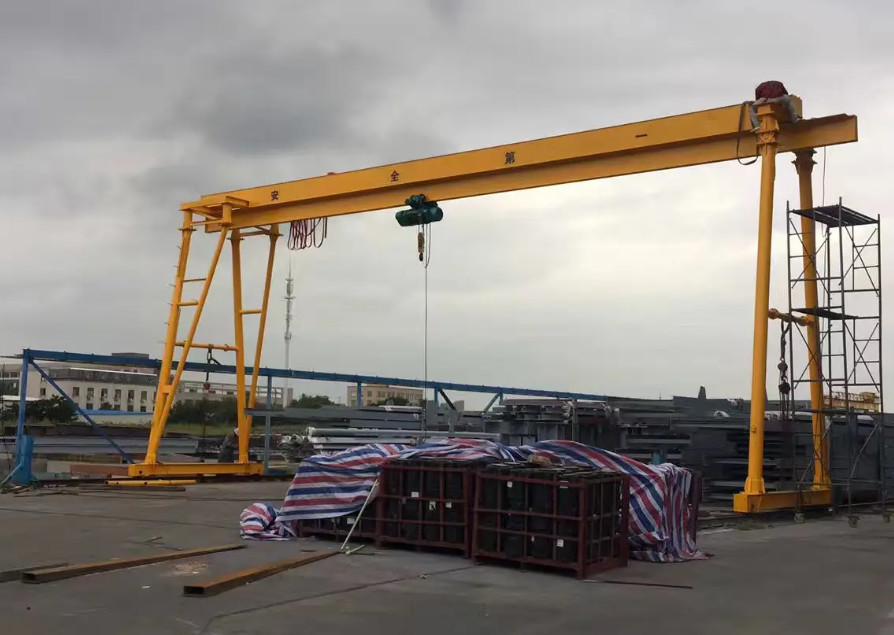

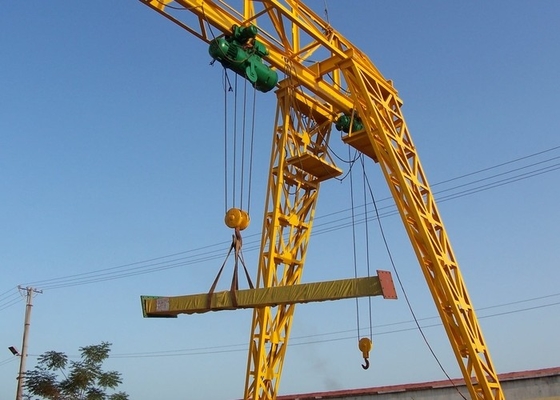

5ton Movable Gantry Crane With Wirerope Electric Hoist Outdoor Using
 |
||
|
Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand. |
| Brief Interduction | ||

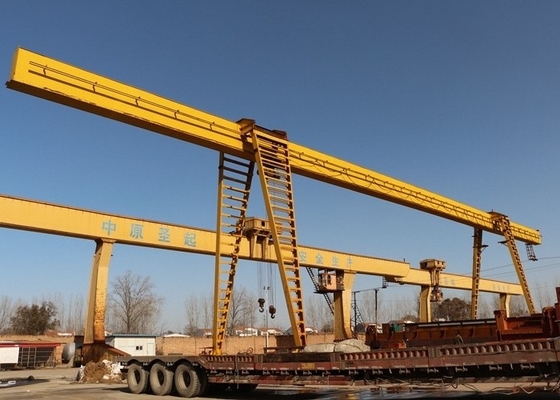

| Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes. Unlike overhead cranes, gantry cranes have legs and move on rails which are usually mounted on floor level. Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail. Manufacturing in accordance with the different customer´s requirements, including single girder, double girder, single leg, double leg, semi gantry, and cantilever styles. SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 550 ton SWL. |
Technical Specification:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30,35,40,50 | ||||||
| Operational method | Pendant Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
| Safety Features | ||
|
||
| Material | ||
|
||
| Advantage | ||
|
||
| Safety Features | ||
|
||
| Material | ||
|
||
| Advantage | ||
|
||
| Package&Delivery | ||
|
All our packing ways are standard packing. In wood case or carton, or as your demand. After the production, we will do our best to do the shipping as soon as possible. |
||
 |
