| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD4999-49999/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Feature: | Gantry Crane | Condition: | New |
|---|---|---|---|
| Rated Loading Capacity: | 5-32t | Span: | 12-30m |
| Lifting Height: | 3~20M | Lifting Mechanism: | Electric Hoist |
| Power Source: | 220V-440V 50/60Hz | Control Method: | Cabin Control/wire Rope Remote Control |
| Place Of Origin: | Henan Of China | Working Duty: | A3-A5 |
| Certificate: | SIO, CE | Color: | Red ,Yellow Or On Request |
| Crane Feature: | Steel Box Type | ||
| High Light: | 10ton Lifting Gantry Crane,I Beam Lifting Gantry Crane,Gantry Crane For Lifting Aluminum |
||

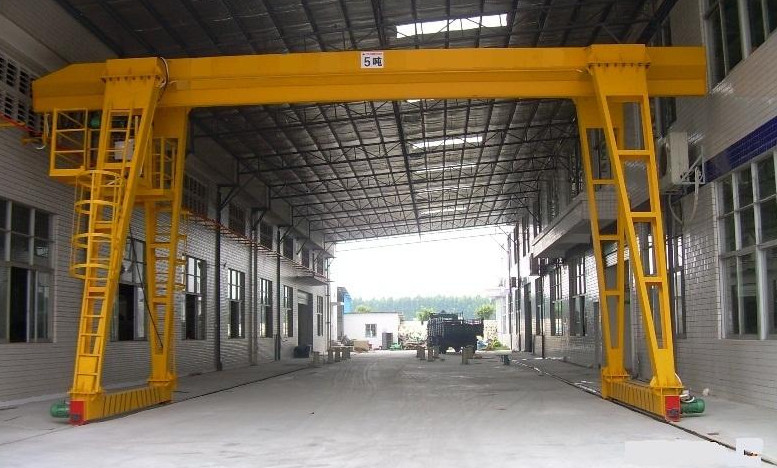

10ton I-Beam Lifting Gantry Crane Used For Lifting Aluminum
Description:
Gantry crane are a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
The Gantry Crane can be designed into different type to meet various requirements:
-Semi Gantry crane can minimum the cost and take full advantage of the existing building construction.
-Truss Gantry Crane can be applied where the speed of wind is high
-Gantry Crane with cantilevers to meet the requirement of loading and unloading on side area.
Technical Specification:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30,35,40,50 | ||||||
| Operational method | Pendant Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
| Safety Features | ||
|
||
| Material | ||
|
||
| Advantage | ||
|
||
