| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-50000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Span: | 7.5-35m |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Gantry Crane |
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Max. Lifting Load: | 1-20t, Max Up To 32t | Product Name: | Ground Travelling Gantry Crane |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Main Electrical Parts: | Schneider |
| Control Method: | Remote Control | ||
| High Light: | Single Beam Gantry Crane 7meters,Electric Hoist Gantry Crane 7meters,Single Beam Gantry Crane 16Ton |
||
A3 Electric Hoist Single Beam 16 Ton Gantry Crane 7 Meters Lifting Height
Gantry crane are a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
The Gantry Crane can be designed into different type to meet various requirements:
-Semi Gantry crane can minimum the cost and take full advantage of the existing building construction.
-Truss Gantry Crane can be applied where the speed of wind is high
-Gantry Crane with cantilevers to meet the requirement of loading and unloading on side area.
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
- Single Girder Electric Hoist
- MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
- Forged Flanged wheel
- Rigid welded box type beam
- compact layout
3. Main Grider and Legs
- Main girder and 4 legs are welded box type
- Material: carbon steel with high quality of Q235B or Q355B
- The main girder is connected by strength bolts.
- Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
- Cabin control
- Pendant control
- Wireless control
5. Electrical Parts
- Conductor power supply
- All crane motion are independent and can be run simultaneously.
- Protection degree IP55
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
- corrosion protection through rust removal by mechanical shot blasting Sa2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: Red or orange as per requirements
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

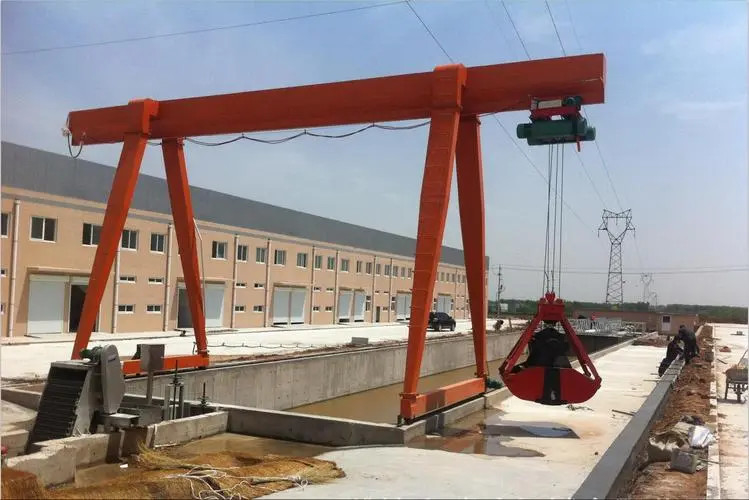

Crane Photos:
