| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-50000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Span: | 7.5-35m |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Gantry Crane |
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Max. Lifting Load: | 1-20t, Max Up To 32t | Product Name: | Ground Travelling Gantry Crane |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Main Electrical Parts: | Schneider |
| Power Source: | 3 Phase 380V 50hz | ||
| High Light: | Rail Mounted Gantry Crane 35m Span,MH Model Rail Mounted Gantry Crane,rail mounted stacking cranes 35m Span |
||
MH Model Workshop Single Girder Gantry Crane Rail Mounted Type Outdoor Using
Description:
Product basic information
Model: MH
Lifting capacity: 1t-20t
Working class: ISO A3
Control method: Cabinet control, remote control and pendent with cable control
Ambient temperature:-20-40℃ indoor or outdoor
Control method: Cabinet control, remote control and pendent with cable control
Main mechanical parts: main beam, supporting legs, bottom beam with wheel.
Electrical parts: Long traveling engines, lifting engines, cross traveling engines, electric control box, limit switches, overload limiter.
Product Usage:
Single Girder Gantry Crane is the ground rail mounted gantry crane and widely used in the open yard and warehouse inside for the material loading/unloading
Product Advantages:
MH model Single Girder Gantry Crane is equipped with China top brand engines, traditional design, mature technology, fast delivery, easy maintenance, simple structure, economic cost make it the best seller among all cranes.
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
- Single Girder Electric Hoist
- MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
- Forged Flanged wheel
- Rigid welded box type beam
- compact layout
3. Main Grider and Legs
- Main girder and 4 legs are welded box type
- Material: carbon steel with high quality of Q235B or Q355B
- The main girder is connected by strength bolts.
- Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
- Cabin control
- Pendant control
- Wireless control
5. Electrical Parts
- Conductor power supply
- All crane motion are independent and can be run simultaneously.
- Protection degree IP55
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
- corrosion protection through rust removal by mechanical shot blasting Sa2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: Red or orange as per requirements
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

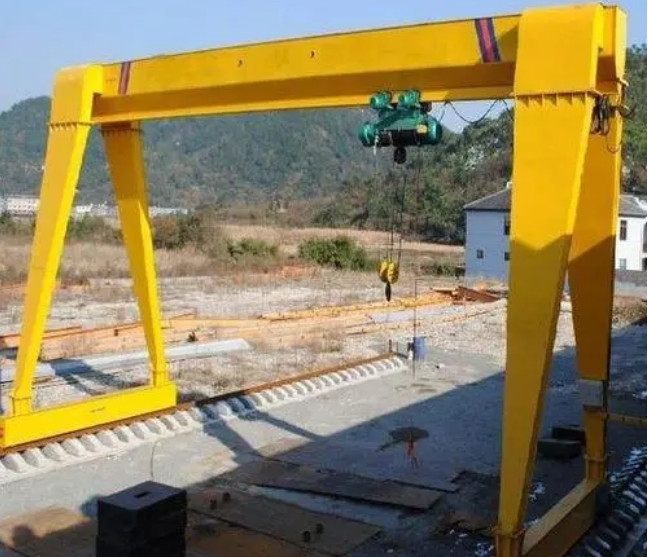

Crane Photos:
