| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Max. Lifting Load: | 1-20t, Max Up To 32t | Product Name: | Ground Travelling Gantry Crane |
|---|---|---|---|
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Rated Loading Capacity: | 1-20t | Color: | Yellow, Red, Or As Requirments |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane |
| Lifting Mechanism: | Electric Hoist | Lifting Speed: | 0~8m/min |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | ||
| High Light: | Workshop Single Beam Gantry Crane,10ton Single Beam Gantry Crane,Gantry Crane With CD Hoist Trolley |
||

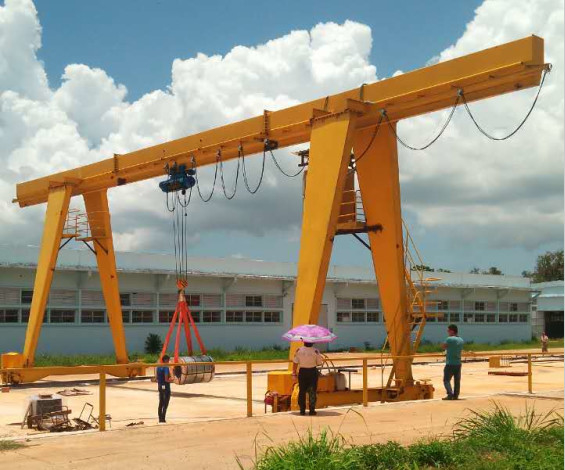

10ton Workshop Using Single Beam Gantry Cranes With CD Hoist Trolley
Description:
A gantry crane is a variant of an overhead crane. It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.
Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers.
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
-Single Girder Electric Hoist
-MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
-Forged Flanged wheel
-Rigid welded box type beam
-compact layout
3. Main Grider and Legs
-Main girder and 4 legs are welded box type
-Material: carbon steel with high quality of Q235B or Q355B
-The main girder is connected by strength bolts.
-Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
-Cabin control
-Pendant control
-Wireless control
5. Electrical Parts
-Conductor power supply
-All crane motion are independent and can be run simultaneously.
-Protection degree IP55
-The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
-Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
-corrosion protection through rust removal by mechanical shot blasting Sa2.5
-First layer of coating epoxy 30 microns
-Second layer of coating epoxy 30 microns
-Third Layer of coating of polyurethane 40 microns
-Average thickness: about 100 microns
-Color: Red or orange as per requirements
Technical Specification:
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
