10ton MH Model Workshop Single Girder Gantry Crane Rail Mounted Type
Description:
Product basic information
Model: MH
Lifting capacity: 1t-20t
Working class: ISO A3
Control method: Cabinet control, remote control and pendent with cable control
Ambient temperature:-20-40℃ indoor or outdoor
Control method: Cabinet control, remote control and pendent with cable control
Main mechanical parts: main beam, supporting legs, bottom beam with wheel.
Electrical parts: Long traveling engines, lifting engines, cross traveling engines, electric control box, limit switches, overload limiter.
Product Usage:
Single Girder Gantry Crane is the ground rail mounted gantry crane and widely used in the open yard and warehouse inside for the material loading/unloading
Product Advantages:
MH model Single Girder Gantry Crane is equipped with China top brand engines, traditional design, mature technology, fast delivery, easy maintenance, simple structure, economic cost make it the best seller among all cranes.
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
- Single Girder Electric Hoist
- MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
- Forged Flanged wheel
- Rigid welded box type beam
- compact layout
3. Main Grider and Legs
- Main girder and 4 legs are welded box type
- Material: carbon steel with high quality of Q235B or Q355B
- The main girder is connected by strength bolts.
- Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
- Cabin control
- Pendant control
- Wireless control
5. Electrical Parts
- Conductor power supply
- All crane motion are independent and can be run simultaneously.
- Protection degree IP55
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
- corrosion protection through rust removal by mechanical shot blasting Sa2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: Red or orange as per requirements
Technical Specification:
| Capacity | ton | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 7, 10, 16,20,24,30, 35, 40 as per requirement | ||||||
| Operation method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground |
ZDY21-4/0.82 ZDY21-4/1.52 |
YZY22-4/1.52 YZR132M2-6/3.72 |
YZR22-4/1.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
||
| Cabin |
ZDR100-4/1.52 ZDR112-4/2.12 |
YZR112L1-4/2.12 YZR160M1-6/2.12 |
YZR112L1-4/2.12 YZR160M2 |
YZR160M2-6/8.52 YZR160L2-6/112 |
YZR160M2-6/8.52 YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 50HZ 3phase AC (According to your demand) | |||||||
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

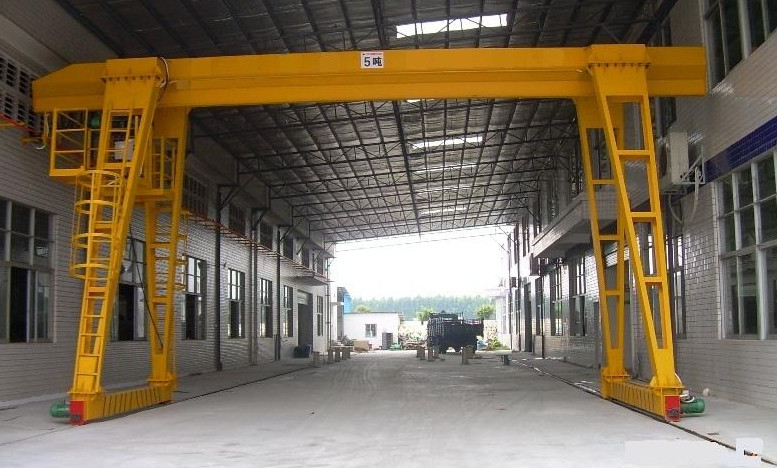

Crane Photos:
