| Span: | 7.5-35m | Feature: | Gantry Crane |
| Max. Lifting Load: | 1-20t, Max Up To 32t | Product Name: | Ground Travelling Gantry Crane |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 16T Cantilever Gantry Crane,Single Beam Cantilever Gantry Crane,16T Single Beam Gantry Crane |
||

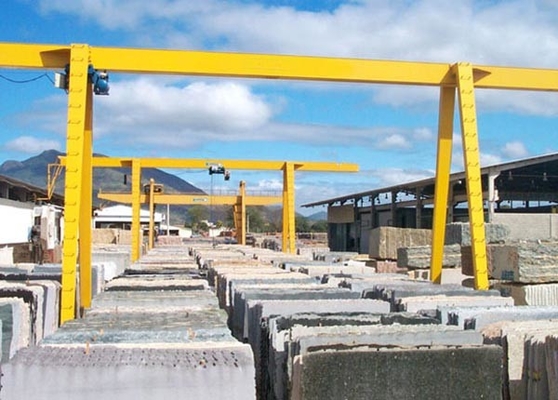

16T Single Beam Cantilever Gantry Crane Used In Yard Marble Granite Stone Fantory
General Description:
Single beam gantry crane is mainly composed of portal frame, namely main single beam, leg, bottom beam, lifting mechanism, walking mechanism, electrical control.It can be designed as two boom, one boom and no boom according toworking condiction.
The single girder gantry crane is used together with the electric wire rope hoist, which runs on the main beam. Generally, the lifting weight is 3-20t, the span is 7-30m, working class is A3 or A4,and the working temperature is -20-40 degrees.
· Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
· Control method:
Pendent line with press button or remote control or cabin or both
· Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Standard Technical Parameter
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Single Girder Gantry Crane Series
There are two type structure of the main girder and support legs as optional based on customers' repuirements:
|
Truss type |
Box type |
||
|
Advantage: |
Advantage: |
||
|
Specification: |
Specification: |
Surface Treatment
1) All steel bare surface are mechanically pretreated, chemically degreased.
2) Sandblasting treatment on steel is available on request.
3) Two pretreatment antirust primer layers to improve adhesion of the enamelled coating to metal.
4) Final Paint the color is depend on customer's.
5) Four coats is about 30 micrometers and they can prevent steel structure corrosion effectively.
