| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t, Max Up To 32t |
| Product Name: | Ground Travelling Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 10T Single Girder Gantry Crane,Electric Travelling Single Girder Gantry Crane,16M Single Girder Gantry Crane |
||
General Description:

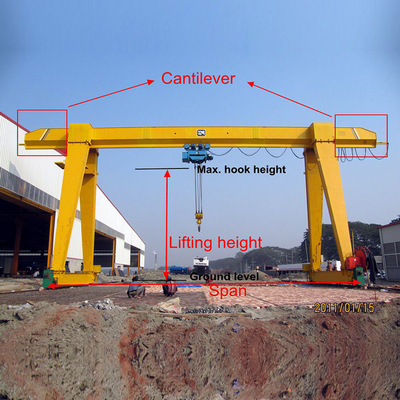

The gantry crane is a bridge-type crane in which the bridge is supported on the ground track by the outriggers on both sides. Structurally, it consists of a gantry, a cart running mechanism, a hoisting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the workshop or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.
Floor Beams and Wheels:
1) The floor beams with electric driving wheels system can control the crane floor running or travelling along the parallel rails mounted on the ground.
2) Wheels are of very high quality and heavy-duty design,45# steel and heat treatment are intentionally designed for long, reliable service life.
3) Sealed type bearings are mudproof, dustproof, and leakproof,the main shaft is anticorrosive.
4) Robot welder and top level welder do the welding make sure the whole body very strong and beautiful.
Standard Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||

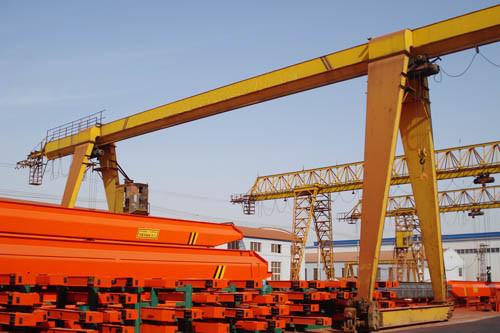

Single Girder Gantry Crane Series:

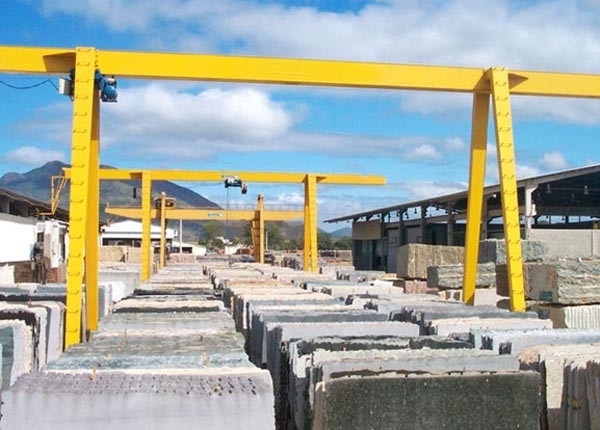

Application:
