MH Single Girder Gantry Crane Rail Outdoor Hoist Crane 10 Ton Price
Description:
The gantry crane is a bridge-type crane in which the bridge is supported on the ground track by the outriggers on both sides. Structurally, it consists of a gantry, a cart running mechanism, a hoisting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the workshop or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
- Single Girder Electric Hoist
- MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
- Forged Flanged wheel
- Rigid welded box type beam
- compact layout
3. Main Grider and Legs
- Main girder and 4 legs are welded box type
- Material: carbon steel with high quality of Q235B or Q355B
- The main girder is connected by strength bolts.
- Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
- Cabin control
- Pendant control
- Wireless control
5. Electrical Parts
- Conductor power supply
- All crane motion are independent and can be run simultaneously.
- Protection degree IP55
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
- corrosion protection through rust removal by mechanical shot blasting Sa2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: Red or orange as per requirements
Technical Specification:
| Capacity | ton | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 7, 10, 16,20,24,30, 35, 40 as per requirement | ||||||
| Operation method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground |
ZDY21-4/0.82 ZDY21-4/1.52 |
YZY22-4/1.52 YZR132M2-6/3.72 |
YZR22-4/1.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
||
| Cabin |
ZDR100-4/1.52 ZDR112-4/2.12 |
YZR112L1-4/2.12 YZR160M1-6/2.12 |
YZR112L1-4/2.12 YZR160M2 |
YZR160M2-6/8.52 YZR160L2-6/112 |
YZR160M2-6/8.52 YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 50HZ 3phase AC (According to your demand) | |||||||
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

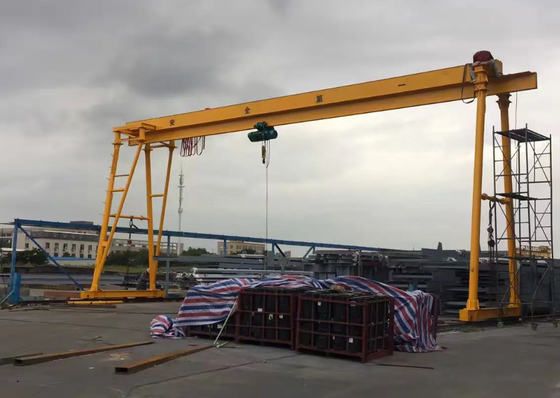

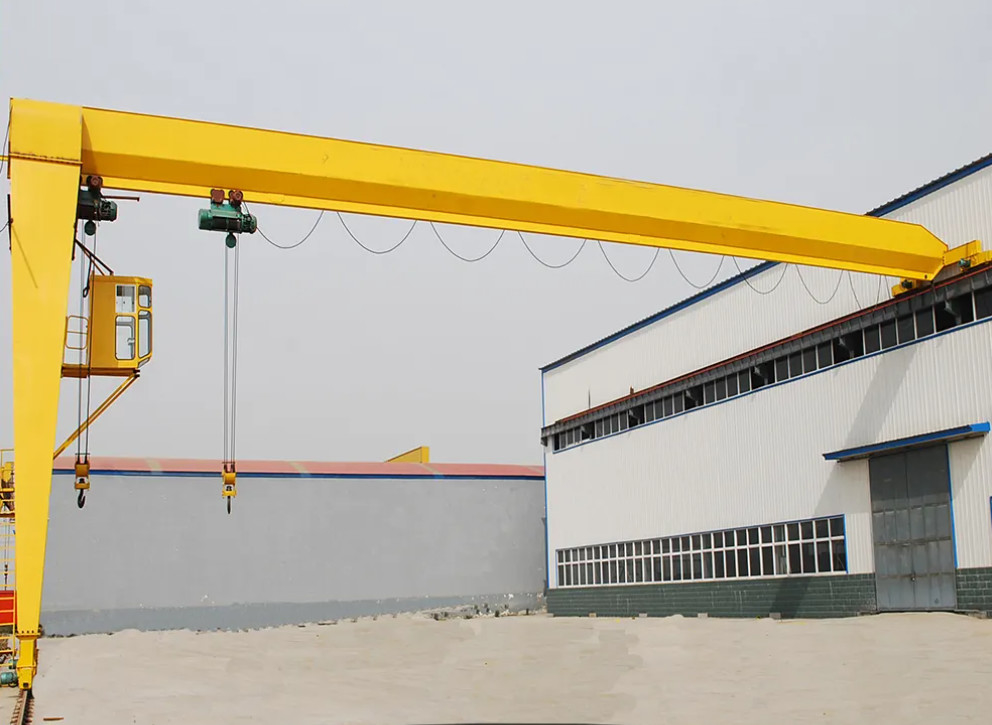

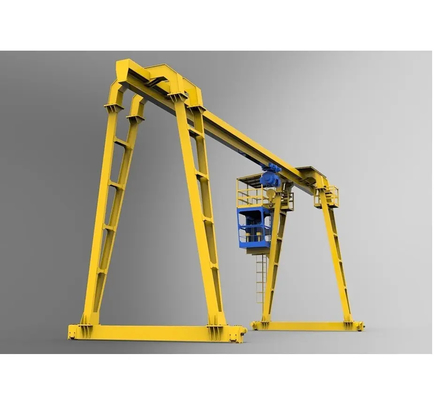

Crane Photos:
