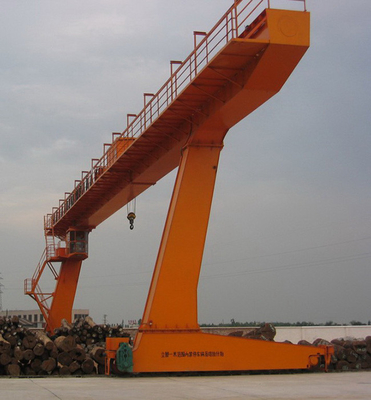

L Type Single Girder Gantry Crane 5 Ton 10 Ton Applied Outside Warehouse
General Description

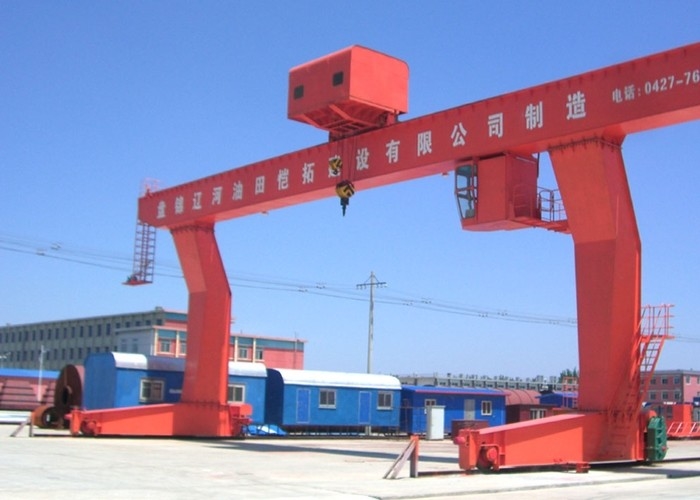

Gantry cranes are a variant of bridge cranes. It is mainly used for the loading and unloading operations of outdoor cargo yards, stockyards, and bulk cargoes. Gantry cranes have the characteristics of high site utilization rate, large operating range, wide adaptability, and strong versatility, and are widely used in port cargo yards.
Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outriggers.
Control method:
Pendent line with press button or remote control or cabin or both
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Standard Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Single Girder Gantry Crane Series:
There are two type structure of the main girder and support legs as optional based on customers' repuirements:
|
Truss type |
Box type |
||
|
Advantage: |
Advantage: |
||
|
Specification: |
Specification: |
Application:
