| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t, Max Up To 32t |
| Product Name: | Ground Travelling Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 8m/Min Single Girder Gantry Crane,ODM Single Girder Gantry Crane,ODM Gantry Crane With Electric Hoist |
||

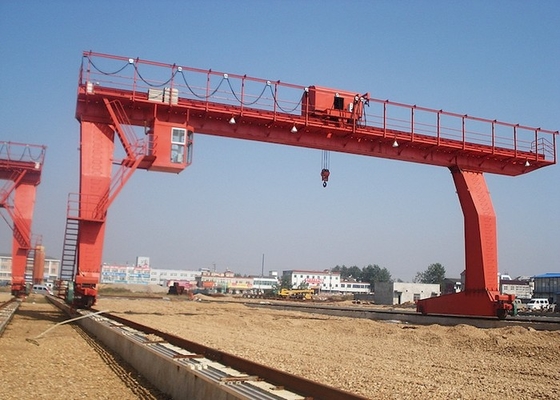

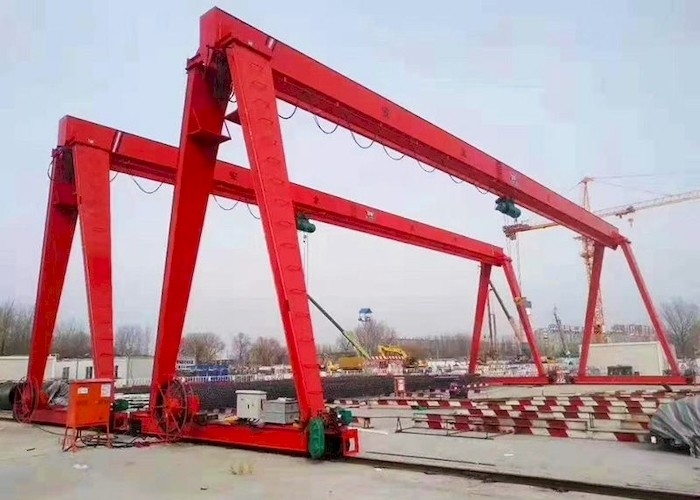

Lifting Speed 8m / Min Single Girder Gantry Crane With Electric Hoist
Description:
The gantry crane is a bridge-type crane in which the bridge is supported on the ground track through the outriggers on both sides. In structure, it consists of gantry, cart running mechanism, lifting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the factory building or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and end beam), outriggers, lower beams and other parts. In order to expand the working range of the crane, the main girder can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.
Specification:
|
Capacity |
T |
3 |
5 |
10 |
16 |
20 |
||
|
Span |
m |
12,16,20,24,30 |
||||||
|
Operational method |
|
Pendent Line With Press Button /Cabin/ Remote |
||||||
|
Speed |
Lifting |
m/min |
8 ,8/0.8 |
8,8/0.8 |
7,7/0.7 |
3.5 |
3.5 |
|
|
Cross travelling |
20 |
20 |
20 |
20 |
20 |
|||
|
Long travelling |
Ground |
20 |
20 |
20 |
20 |
20 |
||
|
Cabin |
20, 30,45 |
20, 30,40 |
30,40 |
30,40 |
30,40 |
|||
|
Motor |
Lifting |
Type /kw |
ZD41-4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 |
ZD151-4/13 ZDS11.5/4.5 |
ZD151-4/13 |
ZD152-4/18 |
|
|
Cross travelling |
ZDY12-4/0.4 |
ZDY121-4/0.8 |
ZDY21-4/0.8×2 |
ZDY121-4/0.8×2 |
YZD-4/0.8×4 |
|||
|
Long travelling |
Ground |
ZDY21-4/0.8×2 |
YZY22-4/1.5×2 |
YZR22-4/1.5×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
||
|
Cabin |
ZDR100-4/1.5×2 |
YZR112L1-4/2.1×2 |
YZR112L1-4/2.1×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
|||
|
Electric hoist |
Model |
CD1/MD1 |
CD1/MD1 |
CD1/MD1 |
CD1 |
HC |
||
|
Lifting height |
m |
6,9 |
||||||
|
Working duty |
|
A3 |
||||||
|
Power supply |
|
380V 60HZ 3phase AC (According to your demand ) |
||||||
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Details:
widely applied to do loading and unloading work in outdoor.
