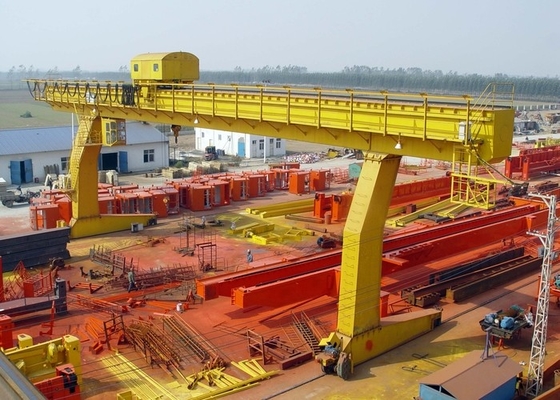

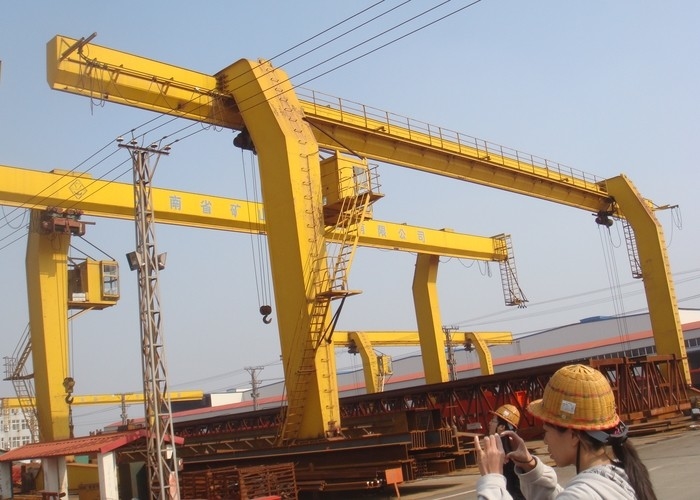

5T-32T Rail Mounted Gantry Crane 380V 60HZ 3 Phase Stone Marble Crane

5T-32T Rail Mounted Gantry Crane 380V 60HZ 3 Phase Stone Marble Crane

  • 5T-32T Rail Mounted Gantry Crane 380V 60HZ 3 Phase Stone Marble Crane
  • 5T-32T Rail Mounted Gantry Crane 380V 60HZ 3 Phase Stone Marble Crane
5T-32T Rail Mounted Gantry Crane 380V 60HZ 3 Phase Stone Marble Crane
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MH, BMH, MHL, MDG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7.5-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Gantry Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 1-20t, Max Up To 32t
Product Name: Ground Travelling Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane
Type: Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane Lifting Mechanism: Electric Hoist
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

32T Rail Mounted Gantry Crane


5t Gantry Crane 380V 60HZ


60HZ 3Phase Stone Marble Crane

Capacity 5t ~ 32t Single Beam Gantry Crane For Stone Marble Handing


General Description:


The gantry crane is a bridge-type crane in which the bridge is supported on the ground track by the outriggers on both sides. Structurally, it consists of a gantry, a cart running mechanism, a hoisting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the workshop or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.


Floor Beams and Wheels:


1) The floor beams with electric driving wheels system can control the crane floor running or travelling along the parallel rails mounted on the ground.
2) Wheels are of very high quality and heavy-duty design,45# steel and heat treatment are intentionally designed for long, reliable service life.
3) Sealed type bearings are mudproof, dustproof, and leakproof,the main shaft is anticorrosive.
4) Robot welder and top level welder do the welding make sure the whole body very strong and beautiful.


Standard Technical Parameter:


Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting



8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
YZR22-4/1.5×2 YZR160M1-6/6.3×2
Cabin ZDR100-4/1.5×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty   A3
Power supply   380V 60HZ 3phase AC (According to your demand )
