16ton Single Girder Gantry Crane With Overhang For Outdoor Outdoor Material Handling
Description:
Single girder gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.The electric hoist portal type hoist crane and CD, MD and so on many kinds of model's electric hoist necessary uses, are one kind the middle and small scale hoist crane which has the axle to move, it is suitable lifting capacity 3t~32t, is suitable the span is 12~35 meters, the working conditions temperature - 20℃ to +40℃.
Parts Detail of Single Girder Gantry Crane:
1.Lifting Mechanism
-Single Girder Electric Hoist
-MDG L type: Side mounted hoist with crab
2.Driven Bogie and Ground End Beam
-Forged Flanged wheel
-Rigid welded box type beam
-compact layout
3.Main Grider and Legs
-Main girder and 4 legs are welded box type
-Material: carbon steel with high quality of Q235B or Q355B
-The main girder is connected by strength bolts.
-Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4.Control
-Cabin control
-Pendant control
-Wireless control
5.Electrical Parts
-Conductor power supply
-All crane motion are independent and can be run simultaneously.
-Protection degree IP55
-The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
-Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6.Painting
-corrosion protection through rust removal by mechanical shot blasting Sa2.5
-First layer of coating epoxy 30 microns
-Second layer of coating epoxy 30 microns
-Third Layer of coating of polyurethane 40 microns
-Average thickness: about 100 microns
-Color: Red or orange as per requirements
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
Technical Specification:
| Capacity | ton | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 7, 10, 16,20,24,30, 35, 40 as per requirement | ||||||
| Operation method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground |
ZDY21-4/0.82 ZDY21-4/1.52 |
YZY22-4/1.52 YZR132M2-6/3.72 |
YZR22-4/1.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
||
| Cabin |
ZDR100-4/1.52 ZDR112-4/2.12 |
YZR112L1-4/2.12 YZR160M1-6/2.12 |
YZR112L1-4/2.12 YZR160M2 |
YZR160M2-6/8.52 YZR160L2-6/112 |
YZR160M2-6/8.52 YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 50HZ 3phase AC (According to your demand) | |||||||
About Us:
We offer a complete range of Spare Parts / Components /kits for cranes and lifting machinery that are tailored to meet specific customer needs.
Our crane kit packages provide the high quality and reliable operation for our customers expect from Santo Cranes while all the Spare Parts / Components /kits can be tailored to the specifics of your single-girder, double-girder, or suspension cranes.
We can provide:
-End Carriages, end trucks and Travel Units
-Hoists: rope hoist, chain hoist
-Power Supply: conductor bus bar, conduct rails, festoon system
-Control System: radio remote control and pendant control, cam control, joystick control
-Hook block, hook
-Crane wheel, wheel assemble
-Rope drum
-Lifting tools below hook: grab bucket, lifting magnet
-pulley, pulley block
For more information on our crane kits, you can contact us in the bottom of this page.

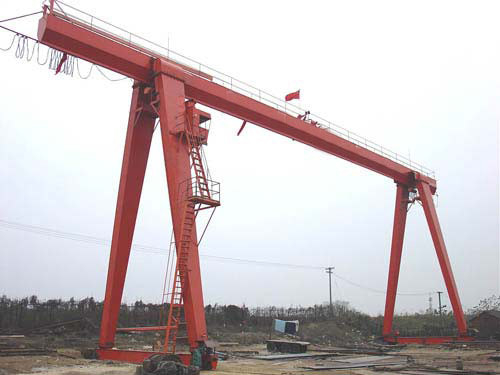

Crane Photos:
