| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
|---|---|---|---|
| Span: | 7.5-35m | Feature: | Gantry Crane |
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Max. Lifting Load: | 1-20t, Max Up To 32t | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Lifting Mechanism: | Electric Hoist |
| High Light: | Outdoor 10 Ton Gantry Crane,35m span 10 ton gantry crane,7.5m span overhead crane 10 ton |
||
Remote Control Electric Hoist Single Girder Gantry Crane With Hook For Indoor Outdoor Material Handling
Description:
Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes.
Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail. SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 500 ton SWL.
SANTO also manufacture a range of custom designed Gantry Cranes specific to client applications.
This crane is normally matched with single girder electric hoist as lifting mechanism, easy control, low cost.
Applied outside to do common loading and unloading with strong hoists.
Technical Specification:
| Capacity | ton | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 7, 10, 16,20,24,30, 35, 40 as per requirement | ||||||
| Operation method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground |
ZDY21-4/0.82 ZDY21-4/1.52 |
YZY22-4/1.52 YZR132M2-6/3.72 |
YZR22-4/1.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
YZR160M1-6/6.32 YZR160M2-6/8.52 |
||
| Cabin |
ZDR100-4/1.52 ZDR112-4/2.12 |
YZR112L1-4/2.12 YZR160M1-6/2.12 |
YZR112L1-4/2.12 YZR160M2 |
YZR160M2-6/8.52 YZR160L2-6/112 |
YZR160M2-6/8.52 YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 50HZ 3phase AC (According to your demand) | |||||||
Parts Detail of Single Girder Gantry Crane:
1. Lifting Mechanism
- Single Girder Electric Hoist
- MDG L type: Side mounted hoist with crab
2. Driven Bogie and Ground End Beam
- Forged Flanged wheel
- Rigid welded box type beam
- compact layout
3. Main Grider and Legs
- Main girder and 4 legs are welded box type
- Material: carbon steel with high quality of Q235B or Q355B
- The main girder is connected by strength bolts.
- Weld joint tested by X ray or ultrasonic examination;
- Designed Deflection≤1/800 of span
4. Control
- Cabin control
- Pendant control
- Wireless control
5. Electrical Parts
- Conductor power supply
- All crane motion are independent and can be run simultaneously.
- Protection degree IP55
- The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
- Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
6. Painting
- corrosion protection through rust removal by mechanical shot blasting Sa2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: Red or orange as per requirements
Safety features:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Application:
Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
About Us:
We offer a complete range of Spare Parts / Components /kits for cranes and lifting machinery that are tailored to meet specific customer needs.
Our crane kit packages provide the high quality and reliable operation for our customers expect from Santo Cranes while all the Spare Parts / Components /kits can be tailored to the specifics of your single-girder, double-girder, or suspension cranes.
We can provide:
-End Carriages, end trucks and Travel Units
-Hoists: rope hoist, chain hoist
-Power Supply: conductor bus bar, conduct rails, festoon system
-Control System: radio remote control and pendant control, cam control, joystick control
-Hook block, hook
-Crane wheel, wheel assemble
-Rope drum
-Lifting tools below hook: grab bucket, lifting magnet
-pulley, pulley block
For more information on our crane kits, you can contact us in the bottom of this page.

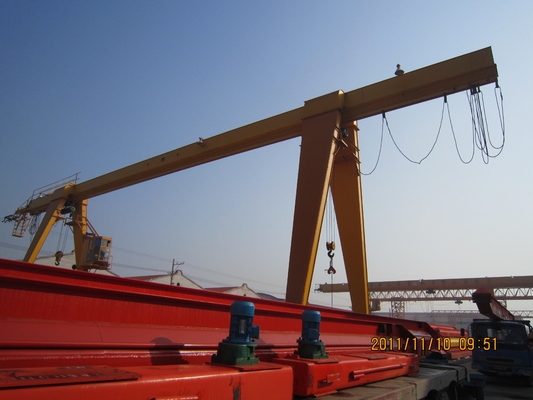

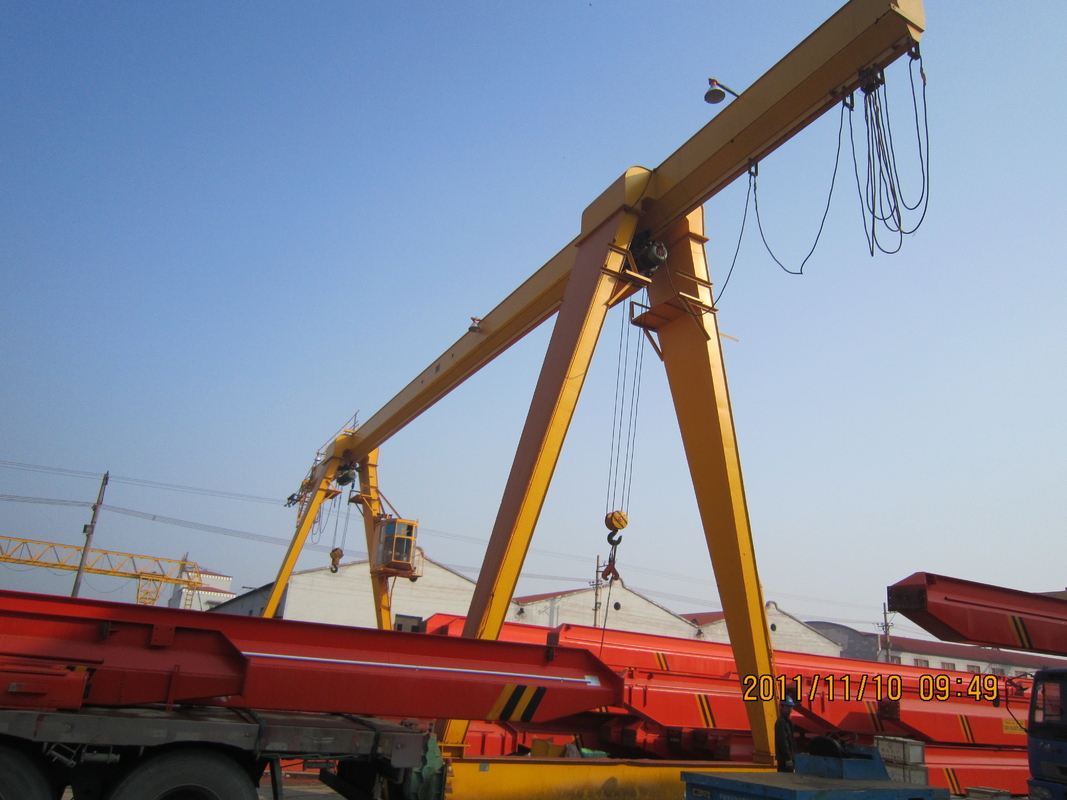

Crane Photos:
