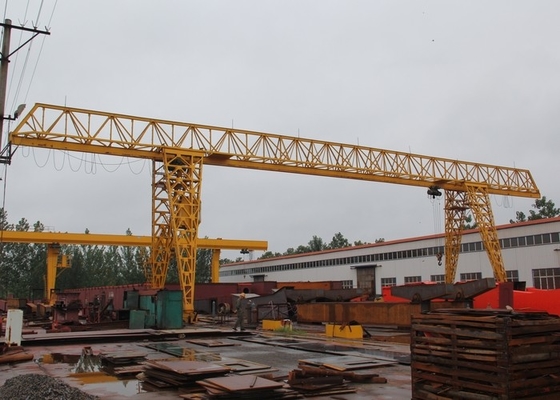

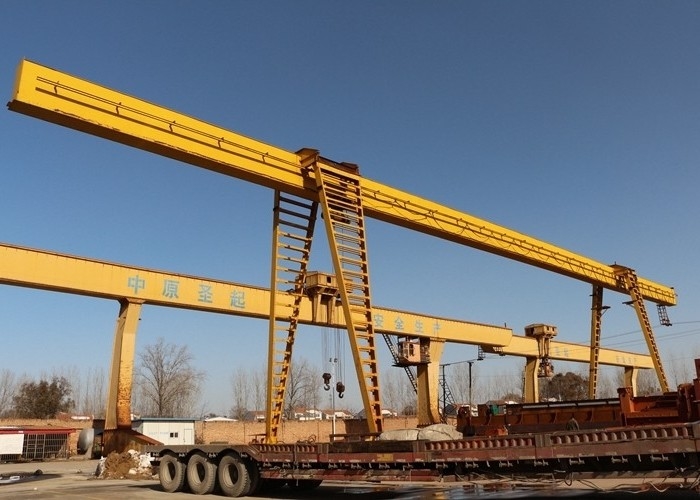

Single Girder Gantry Crane With Hook

Single Girder Gantry Crane With Hook

  • Single Girder Gantry Crane With Hook
  • Single Girder Gantry Crane With Hook
  • Single Girder Gantry Crane With Hook
  • Single Girder Gantry Crane With Hook
Single Girder Gantry Crane With Hook
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MH, BMH, MHL, MDG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Name: Ground Travelling Gantry Crane Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
Span: 7.5-35m Feature: Gantry Crane
Max. Lifting Height: 6m~30m Max. Lifting Load: 1-20t, Max Up To 32t
Control Method: Wireless Remote Control,Ground Control,pendant Control Application: Workshop,Warehouse,plants,factory,warehouse And So On
Rated Loading Capacity: 1-20t Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane
Lifting Mechanism: Electric Hoist Lifting Speed: 0~8m/min
High Light:

Single Girder Gantry Crane With Hook


8m/min Single Girder Gantry Crane


HC 20 ton gantry crane

Remote Control Electric Hoist Single Girder Gantry Crane With Hook For Indoor Outdoor Material Handling




Single girder gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.The electric hoist portal type hoist crane and CD, MD and so on many kinds of model's electric hoist necessary uses, are one kind the middle and small scale hoist crane which has the axle to move, it is suitable lifting capacity 3t~32t, is suitable the span is 12~35 meters, the working conditions temperature - 20℃ to +40℃.


Technical Specification:


Capacity ton 3 5 10 16 20
Span m 7, 10, 16,20,24,30, 35, 40 as per requirement
Operation method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting m/min 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross traveling   20 20 20 20 20
Long traveling Ground   20 20 20 20 20
  Cabin   20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw



ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross traveling   ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.82 ZDY121-4/0.82 YZD-4/0.84
Long traveling Ground





















Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9,12,18,24,30
Working duty   A3
Power supply   380V 50HZ 3phase AC (According to your demand)


Safety features:

Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!


Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.


About Us:


Single Girder Gantry Crane With Hook 0

For over 35 years, Santo Cranes has been delivering reliable solutions to customers around the world. As one of the world’s leading crane manufacturers, we offer a range of technologically-advanced, best-in-class products and solutions for all of your industrial material flow and lifting needs. Common industries we work with include:

- Aircraft
- Automotive
- Chemicals
- Coal mining
- Construction
- Cement, glass, bricks and concrete
- Food and beverages
- Metal processing
- Machinery and equipment
- Metal ore mining
- Power and energy
- Pulp and paper
- Railways
- Rubber and plastics
- Ships and boats
- Port
- Waste management
- Wood and wood products

Rail Mounted Mobile Gantry Crane 5 ton 10 ton 15 ton 20 ton 25 ton 30 ton from China Top Manufacturer Supplier


Crane Photos:

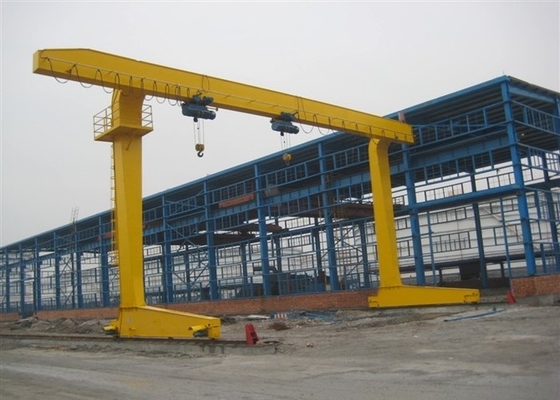

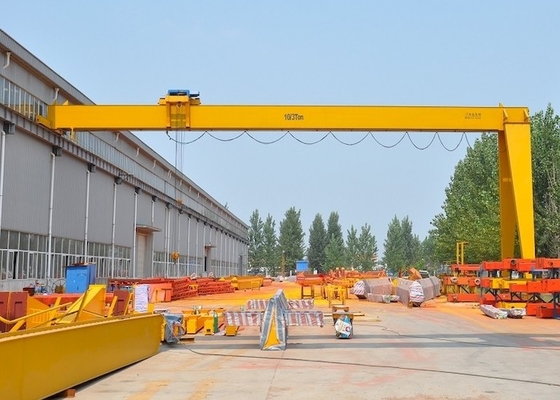

Single Girder Gantry Crane With Hook 2Single Girder Gantry Crane With Hook 3
