Product Details:
Payment & Shipping Terms:
|
| Feature: | Gantry Crane | Condition: | New |
|---|---|---|---|
| Rated Loading Capacity: | 5t-10t-16t-20t | Span: | 12-30m |
| Lifting Height: | 3~20M | Lifting Mechanism: | Hoist Trolley |
| Power Source: | 220V-380V-415V-440V 50/60Hz | Control Method: | Cabin Control/wire Rope Remote Control |
| Place Of Origin: | China | Working Duty: | A3-A5 |
| Certificate: | SIO, CE | Color: | Red ,Yellow Or On Request |

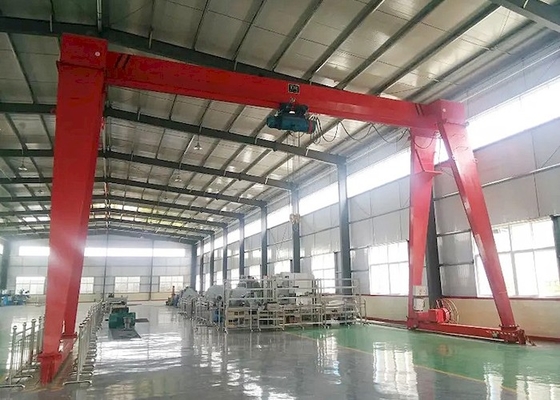

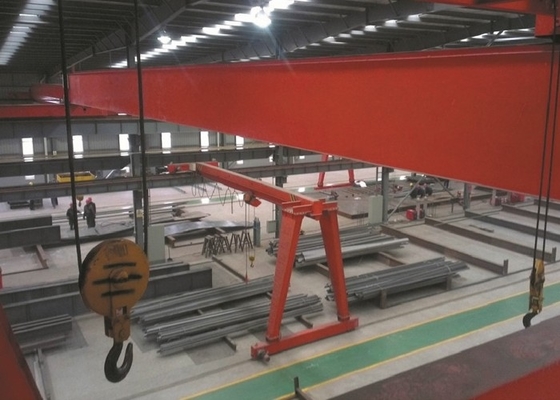

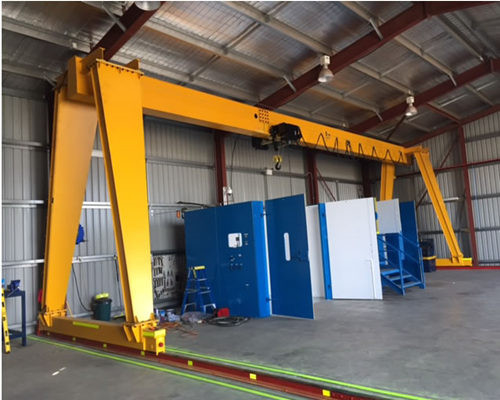

5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist
 |
||
|
Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand. |
| Brief Interduction | ||
| Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes. Unlike overhead cranes, gantry cranes have legs and move on rails which are usually mounted on floor level. Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail. Manufacturing in accordance with the different customer´s requirements, including single girder, double girder, single leg, double leg, semi gantry, and cantilever styles. SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 550 ton SWL. |
Technical Specification:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30,35,40,50 | ||||||
| Operational method | Pendant Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
| Safety Features | ||
|
||
| Material | ||
|
||
| Advantage | ||
|
||
