| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | SKFR |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD999-3999/set |
| Packaging Details: | Packed by high quality plywood crate |
| Delivery Time: | 10-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Max. Lifting Load: | 20t |
|---|---|---|---|
| Max. Lifting Height: | 3-18m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Product Name: | 6.3ton European Standard Electric Wire Rope Hoist For Workshop Plant | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Color: | Yellow,Blue,Green, Or As Requirments |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Lifting Mechanism: | Electric Hoist |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | Warranty: | 12 Months |
| Lifting Speed: | 0.8/5m/min | ||
| Highlight: | 6.3ton Electric Wire Rope Hoist,Workshop Plant Electric Wire Rope Hoist,6.3ton European Electric Hoist |
||

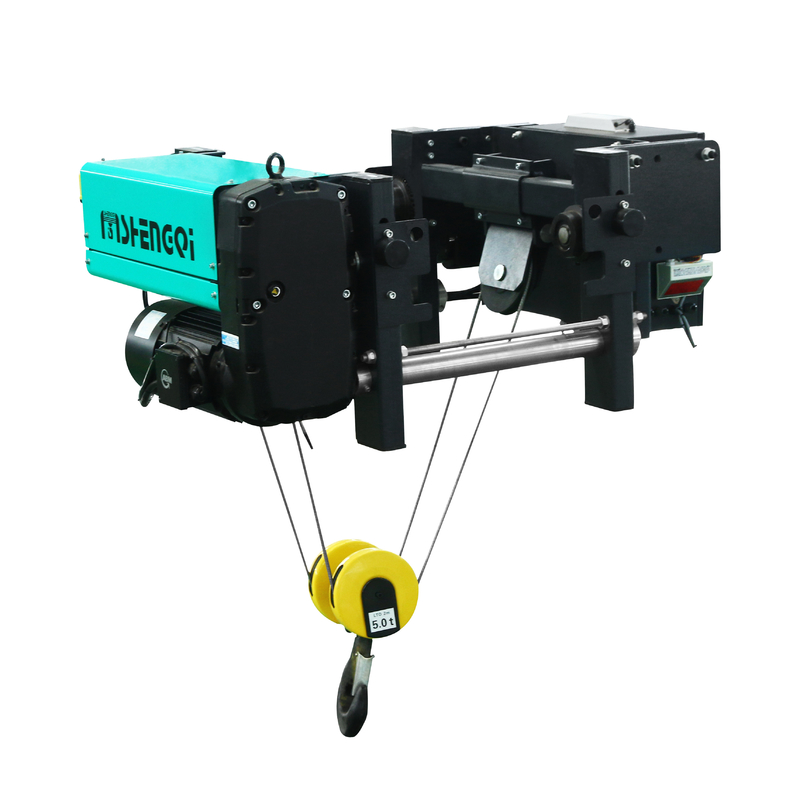

The electric wire rope hoist designed for single girder cranes follows the European FEM /DIN standards with compact structure, safe and efficient, easy operation. Industries use these electric wire rope hoists along with electric trolley for single girder cranes or another alternative like a fixed suspension type for applications involving goods lifting.
- Loading capacity: 1.25 ~ 20t
- Lifting height: 6 ~ 18m
- Lifting speed Double speed: 0.8/5 m/min; or customized
- Traveling speed Variable frequency speed: 2 ~ 20 m/min; or customized
- Working class: M5 / M6 (FEM 2M/3M)
- Working temperature: -20 ~ 40 ℃
- Power supply: AC-3Phase-220//230/380/400/415/440V-50/60Hz
- Control voltage: DC-36 / 48V
1. High working efficiency; Excellent Performance, safe and Reliable
2. Smooth movement & comfortable operation;
3. Convenient maintenance & aesthetic painting;
4. Compact structure, light dead weight, light wheel load and reliable performance;
5. Efficient Transmission and power Source
6. customized: design and manufacture according to your request.
Standard features include two lifting and trolley speeds, two upper and one lower precision limit switches, overload limit, heavy duty wear resistant rope guide, DC rectified brakes, and lifetime lubricated bearings and gear reducers.
