Product Details:
Payment & Shipping Terms:
|
| Span: | 7.5-31.5m | Feature: | Bridge Crane |
|---|---|---|---|

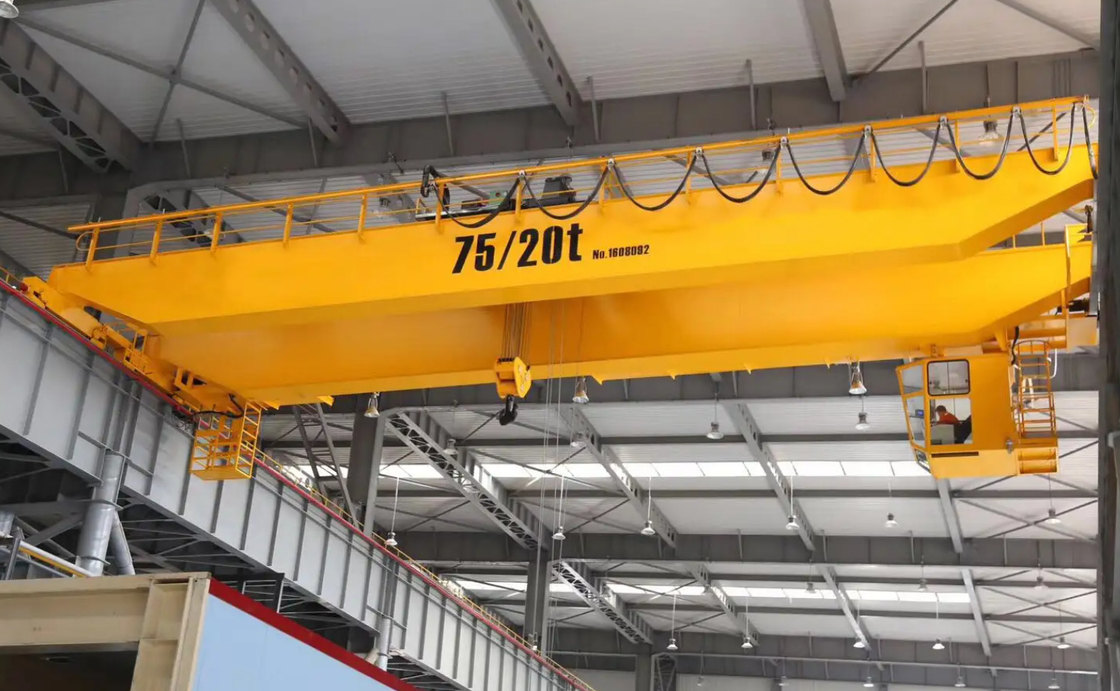

| Max. Lifting Height: | 6m~30m | Product Name: | Overhead Travelling Crane,Electric Double Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Lifting Mechanism: | Double Girder Electric Hoist With Trolley, Open Winch Hoist Trolley | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Working Duty: | A5~A8 | Power Supply: | 380V 50Hz Or On Request |
| Rated Lifting Moment: | 10kn-200 Kn | ||
| High Light: | Double Hook Overhead Bridge Crane,10Ton Overhead Bridge Crane,Double Hook Factory Overhead Crane |
||
Specification:
| Lifting Capacity | Span |
Lifting Height |
Work Duty |
Main Hook Speed |
Aux. Hook Speed |
Trolley Traveling Speed |
Crane Traveling Speed |
Rail Track |
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 50/10 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Span, lifting height is customizable as requirements | ||||||||
Features:
1. Lightweight and Modular Design, Overall height is 20%~25% lower than traditional cranes;
2. Self-weight is lighter by 20%~30%;
3. Max wheel load reduces 15%~20%;
4. Smaller limiting size increases working scope;
5. Light structure reduces the cost of workshops;
6. Every component designed to be a standard series and interchangeable;
7. Modularization design is easy for transporting;
8. Standard modular design makes good quality and fast delivery.
Intelligent:
1. Electric anti-sway tech realize accurate positioning;
2. Advanced electric control tech turn it into a crane robot with semi-automatic control and full-automatic control;
Safety Protection:
Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
