5 Ton MH Model Box Type Single Girder Gantry Crane 3Phase 380V 50hz

5 Ton MH Model Box Type Single Girder Gantry Crane 3Phase 380V 50hz
5 Ton MH Model Box Type Single Girder Gantry Crane 3Phase 380V 50hz

Large Image :  5 Ton MH Model Box Type Single Girder Gantry Crane 3Phase 380V 50hz

Product Details:

Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MH, BMH, MHL, MDG

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD5000-50000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Detailed Product Description
Span: 7.5-35m Feature: Gantry Crane
Max. Lifting Height: 6m~30m Rated Lifting Moment: Different
Max. Lifting Load: 1-20t, Max Up To 32t Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane Lifting Mechanism: Electric Hoist
Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

Single Girder Gantry Crane 3Phase

,

Box Type 5 Ton Gantry Crane

,

Box Type Single Girder Gantry Crane

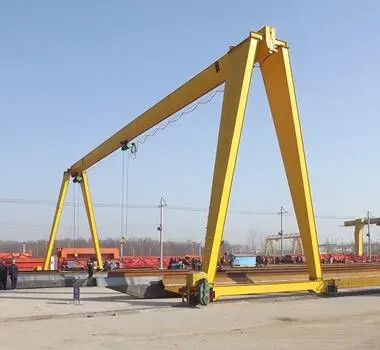

5 Ton Capacity MH Model Single Girder Box Type Gantry Crane




MH type electric hoist gantry crane is used together with CD MD model electric hoists. It is a track travelling small and medium-sized crane. Its proper lifting weight is 5 to 20 tons. Proper span is 12 to 30 meters, its proper working temperature is -20°C to 40°C. This product is a regular crane widely used at open ground and warehouses to lqad, unload or grab materials. It has two controlling methods, ground controlling and room controling.





Floor Beams and Wheels:



1) The floor beams with electric driving wheels system can control the crane floor running or travelling along the parallel rails mounted on the ground.
2) Wheels are of very high quality and heavy-duty design,45# steel and heat treatment are intentionally designed for long, reliable service life.
3) Sealed type bearings are mudproof, dustproof, and leakproof,the main shaft is anticorrosive.
4) Robot welder and top level welder do the welding make sure the whole body very strong and beautiful.





Standard Technical Parameter:



Capacity

T

3

5

10

16

20

Span

m

12,16,20,24,30

Operational method



Pendent Line With Press Button /Cabin/ Remote

Speed

Lifting



m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5

3.5

Cross travelling

20

20

20

20

20

Long travelling

Ground

20

20

20

20

20

Cabin

20, 30,45

20, 30,40

30,40

30,40

30,40

Motor

Lifting

Type /kw

ZD41-4/4.5
ZDS1-4/0.4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13

ZD152-4/18

Cross travelling

ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.8×2

ZDY121-4/0.8×2

YZD-4/0.8×4

Long travelling

Ground

ZDY21-4/0.8×2
ZDY21-4/1.5×2

YZY22-4/1.5×2
YZR132M2-6/3.7×2

YZR22-4/1.5×2

YZR160M1-6/6.3×2
YZR160M2-6/8.5×2

YZR160M1-6/6.3×2
YZR160M2-6/8.5×2

Cabin

ZDR100-4/1.5×2
ZDR112-4/2.1×2

YZR112L1-4/2.1×2
YZR160M1-6/2.1×2

YZR112L1-4/2.1×2
YZR160M2

YZR160M2-6/8.5×2
YZR160L2-6/11×2

YZR160M2-6/8.5×2
YZR160L2-6/11×2

Electric hoist

Model

CD1/MD1

CD1/MD1

CD1/MD1

CD1

HC

Lifting height

m

6,9

Working duty



A3

Power supply



380V 60HZ 3phase AC (According to your demand )



5 Ton MH Model Box Type Single Girder Gantry Crane 3Phase 380V 50hz 0
