Product Details:
Payment & Shipping Terms:
|
| Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale | Span: | 7.5-31.5m |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Max. Lifting Load: | 20t |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Lifting Mechanism: | Electric Hoist |
| High Light: | 380V 50hz Warehouse Overhead Crane,5ton Warehouse Overhead Crane |
||

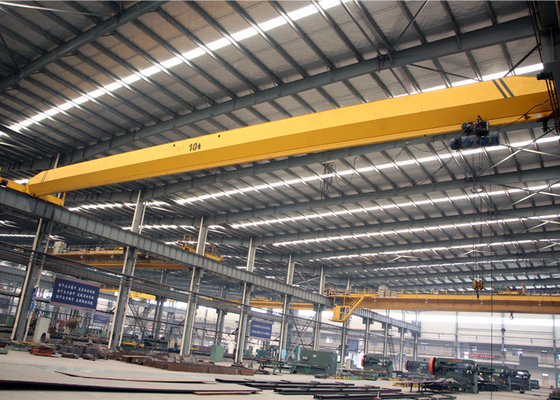

Warehouse Overhead Crane With 5ton Electric Hoist For Lifting Spare Parts
Description:
LDA model single girder EOT crane is matched with electric hoist which is CD model or MD model.It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
We has the high performance European standard overhead crane. Aimed to the distinct working environment, the explosion-proof overhead crane and single girder electric hoist crane may be your best choice for hazardous and poor situation.
Considering the space of factory, you can choose the underhung overhead crane when headroom of your factory is limited, on the contrary, a top running bridge crane must be more suitable.
Santo has the mature technology on developing and producing cranes especially heavy duty.
Besides, we also provide customized service for your additional requirements.
Standard Specification:
| Lifting capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |||||||||
| Span | m | 7.5-31.5 | ||||||||||
| Lifting height | m | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |||||||||
| Traveling mechanism | Traveling speed | m/min | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 |
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| Motor model | ZDY21-4 | ZDY122-4 | ZDY131S-4 | |||||||||
| Motor power | kw | 0.8*2 | 1.5*2 | 1.5*2 | 2.2*2 | |||||||
| Motor rotation | m/min | 1380 | 1380 | |||||||||
| Lifting mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
| Lifting speed | m/min | 8, 8/0.8, 7, 7/0.7 | 3.5, 3.5/0.35 | |||||||||
| Traveling speed | m/min | 20(30) | 20(30) | |||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
| Working duty | A3-A5 | |||||||||||
| Power supply | 380V-50HZ, 3Phase or as your demand | |||||||||||
Application:
LD series single girder electric hoist overhead crane usually used in plant, warehouse, stock ground, different places to lift goods, such as accessories manufacturing warehouse,tube convey plant, maintenance warehouse etc. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Crane Advantage:
■ Light structure, easy installation and maintenance;
■ Reasonable structure, strong bearing capacity;
■ Low noise, soft starting and stopping;
■ Safe and reliable operation;
■ Low cost maintenance, long working life;
■ Strong box type, welding by machine hand;
■ Wheels, wire rope drum, gears, couplings are processed by CNC manchine center, TOP quality material;
■ Heavy duty slipring motor, Or Sq. cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.
Reference Cases:
