Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | MG 10 Ton Gantry Crane,10 Ton Gantry Crane Hoist,Box Type Harbor Freight Gantry Crane |
||

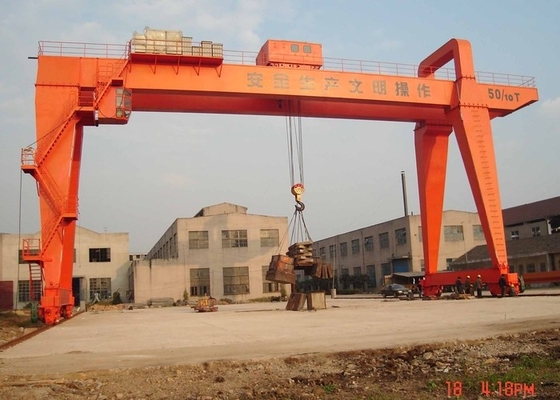

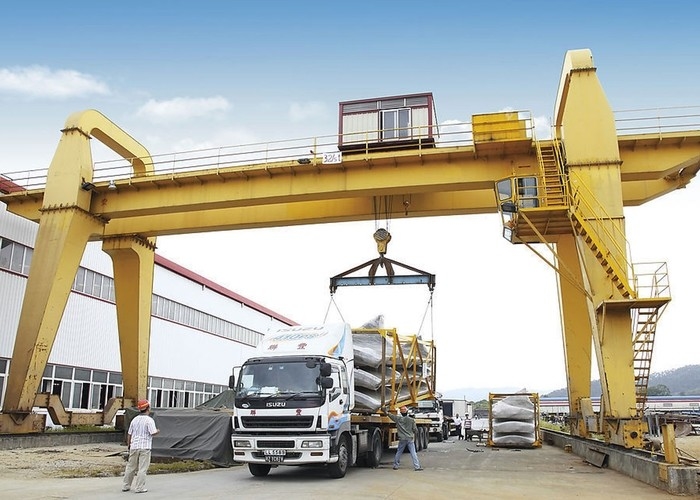

Large Span Double Girder Gantry Crane Box Type Available Manufacturer
General description:
Double girder gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works.
This kind of crane is composed of bridge, supporting legs, crane travelling mechanism, trolley with strong lifting winch, electric equipment and control system.
As its heavy duty design, it can be widely used in all kinds of industrial field. As its heavy duty design, it can be widely used in all kinds of industrial field.
Special Features:
Advantages of Double Girder Gantry Crane:
Technical Parameters:
| Capacity (ton) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | ||
| Span (m) | 18, 22, 24, 26, 30, 35 | |||||||
| Lifting height (m) | 10, 11, 12 | |||||||
| Working class | A5 | |||||||
| Control way | Cabin control or remote control | |||||||
| Power source | 380V 50HZ 3phase (Could supply it as yours) | |||||||
| Trolley lifting mechanism | ||||||||
|
Lifting speed (m/min) |
Main hook | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |
| Auxiliary hook | - | - | 14.6 | 15.4 | 15.4 | 10.4 | ||
| Trolley traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 35.6 | 36.6 | 36.6 | 37 | 36 | ||
| Crane traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | ||
| Motor power(KW) | 40.8-51.8 | 41.5-52.8 | 80-77 | 84-81 | 99.3-117.3 | 126.5 | ||
| Rail track recommended | 43kg/m | 43kg/m or QU70 | ||||||
How to choose:
1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
Double girder ganty crane series:
MG double girder box type gantry crane
· Loading capacity:5~800T
· Lifting height:6~30m
· Span:5~35M
· Working calss:A5~A7
· Power supply:220 ~ 440V,50/60Hz,3Phase
· Working temperature:-20-40 ℃
MG double girder truss type gantry crane
· Loading capacity:5~800T
· Lifting height:6~30m
· Span:18~35m
· Working calss:A5~A7
· Power supply:220 ~ 440V,50/60Hz,3Phase
· Working temperature:-20-40 ℃
U type double girder gantry crane
· Loading capacity:5~800T
· Lifting height:6~30m
· Span:18~35m
· Working calss: A5~A7
· Power supply:220 ~ 440V,50/60Hz,3Phase
· Working temperature:-20-40 ℃
MZ double girder gantry crane with grab bucket
· Loading capacity:5~100T
· Lifting height:6~30m
· Span:18~35m
· Working calss:A5~A7
· Power supply:220 ~ 440V,50/60Hz,3Phase
· Working temperature:-20-40 ℃
Double girder semi gantry crane
· Loading capacity:5~32T
· Lifting height:6~30m
· Span:6~35m
· Working calss: A3~A5
· Power supply:220 ~ 440V,50/60Hz,3Phase
· Working temperature:-20-40 ℃
