Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: 1.0, 3.0, 5.0, 8.0
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD25000-45000/set
Packaging Details: Standard nude packing by container, Electrical and spare parts packed by high quality plywood crate.
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Product Name: Mini Crawler Crane, Spider Crane Slewing System: 0-360° Continuous
Ground Lifting Height: 5.5m, 9.2m, 16.8m, 17.8m Rated Lifting Capacity: 1 Ton, 3 Ton, 5 Ton, 8 Ton
Crane Feature: Easy Operation Hydraulic Telescopic Boom Control Method: Wireless Remote Control, Manual Operation
Power Supply: Diesel, Electric Motor, Chargeable Battery, Gasoline, 220-480V Single Phase Or 3 Phase, Or Combination Application: Construction, Steel Erection, Glazing Industries, PowerInspectionandmaintenance, Mechanicalmaintenance
High Light:

Indoor Mobile Spider Crane KB1.0

,

Swing Leg Mobile Spider Crane

,

KB1.0 mini tracked crawler crane

Lay - Leg Swing - Leg Design Spider Crane Safety Hoisting For Indoor Operations



Description:



With the characteristics of small size, light weight, low pressure on the ground, and the ability to work flexibly in a limited space, the spider crane can also be used for the maintenance of some aircraft and helicopters.



The crawler design of the spider crane allows it to enter uneven ground for work and movement. The four outriggers on the equipment can fix the balance of the machine and even work on stairs. The compact body of the small spider crane can be transported to various places. It can save a lot of time and problems for customers, and can quickly help users solve work construction.



Technical parameters:



Model KB1.0
Specification 1.0Tx 1.5m
Maximum Working Radius 5.07m xO.2T
Maximum Ground Lifting Height 5.6m
Maximum Underground Lifting Height 18m
Winch Device Hook Speed 10m/min(2 fall)
Rope 07.7mm x 48m
Telescopic System Boom Type Full automatic 4 section
Boom Length 2.08m-5.5m
Up and Downs Boom Angle/Time 0° ~75./14sec
Slew System Slew Angle/Time 0° 〜360° (Continuous )/40sec
Outrigger Outrigger Active Form Automatic for the 1 section, manual adjustment for 2,3 section
Maximum Extended Dimensions 3600mm x 3200mm
Traction system Walking Way Hydraulic motor driven
Walking Speed 0-3.2km/h
Grade Ability 20°
Ground Length x Width x 2 960mm x 180 mm x 2
Ground Pressure 35.6kpa (0.356 kgf/cm2)
Diesel Engine Model (HONDA) GX270
Displacement 270ml
Maximum Output 5.1Kw/1800rpm
Starting Method Electric starting
Fuel/Tank Capacity Petrol/6L
Safety Devices Sensor of outrigger, Emergency stop button, height limiter
System Voltage DC12V
Dimension Length x Width x Height 2140mm x 600mm x 1413mm


Load Chart at Maximum Extended Outriggers:



2.08m boom 3.22m boom 4.36m boom 5.5m boom
Working Radius (m) Rated Load
(t)
Working Radius (m) Rated Load
(t)
Working Radius (m) Rated Load
(t)
Working Radius (m) Rated Load
(t)
<1.5 1.0 <1.5 1.0 <1.8 0.85 <2.5 0.65
1.65 0.92 2.0 0.8 2.0 0.8 3.0 0.53
    2.5 0.65 2.5 0.65 3.5 0.4
    2.79 0.56 3.0 0.53 4.0 0.32
        3.5 0.41 4.5 0.27
        3.93 0.33 5.00 0.21
            5.07 0.2



Advantages & Features:


·Proportional remote controlle and proportional valve (optional)
The crane can be controlled remotely, and the lifting weight can be moved gradually.



·Moment limiter(optional)
Accurately display the weight of the object being lifted, and protect the safety of the lifting arm during the lifting operation.



·Outrigger by remote control (optional)
It can operate the outrigger in close range to avoid accidents caused by invisible outrigger operation in complex environment.



·U boom (optional)
Reasonable structure, 1 weld, large contact area between boom, high strength, long life.



·Take the elevator
Fuselage width 600mm, can enter 3 ton elevator or indoor operation.



·One key tor the level of body (optional)
Depending on the surrounding environment, the outrigger can be operated independently or controlled by the computer at the same time to achieve one-key leveling and keep the body in a horizontal state.



·Interlock system (optional)
After the boom is reset, the supporting leg can be operated and the crane can move safely.



·Travel available by forklift truck
Convenient forklift transport, the crane has a insertion position.



·Remote control walking (optional)
The machine can be operated at a long distance to walk, in the harsh environment, can better protect the safety of people.



·Sensor of outrigger on the ground
Each leg is equipped with an earthing sensor. When the leg leaves the ground in danger, the machine will alarm and stop working.Make sure the machine doesn't tip over.

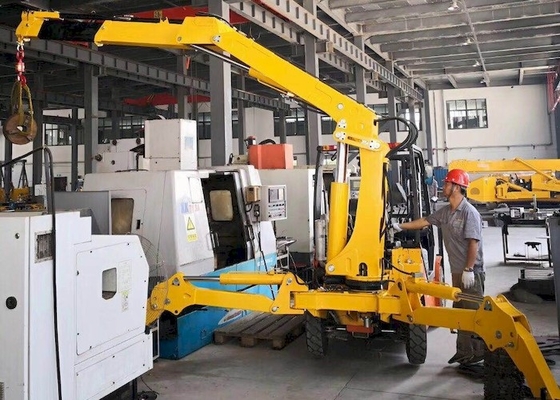

Swing Leg Indoor Mobile Spider Crane KB1.0 Mini Tracked Crawler Crane 0

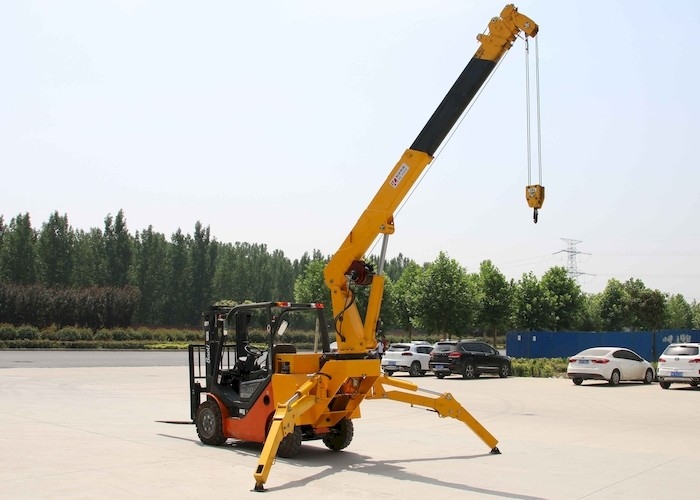

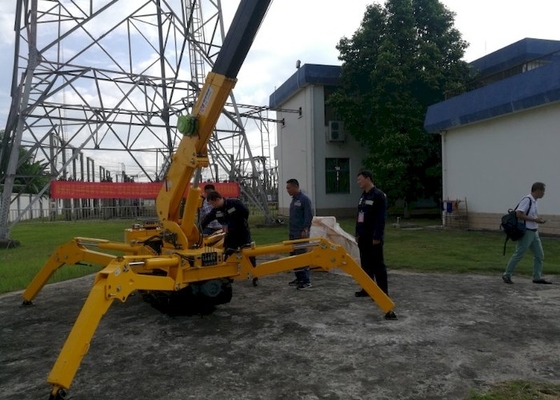

Photos:
