| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz 3P | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Hoisting Speed: | Standard, Single Speed / Double Speed | ||
| High Light: | 50T HHBB Electric Chain Hoist,0.5T Electric Chain Hoist With Motorized Trolley,ISO CE 50 ton chain hoist |
||

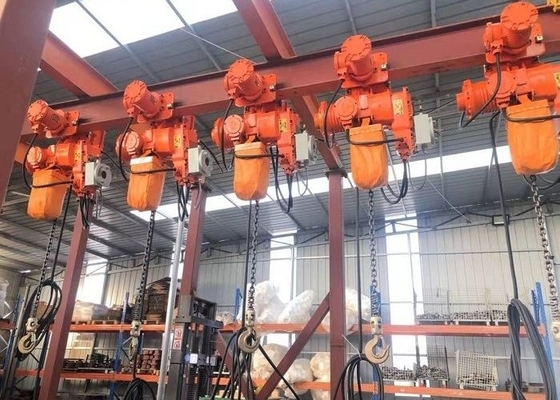

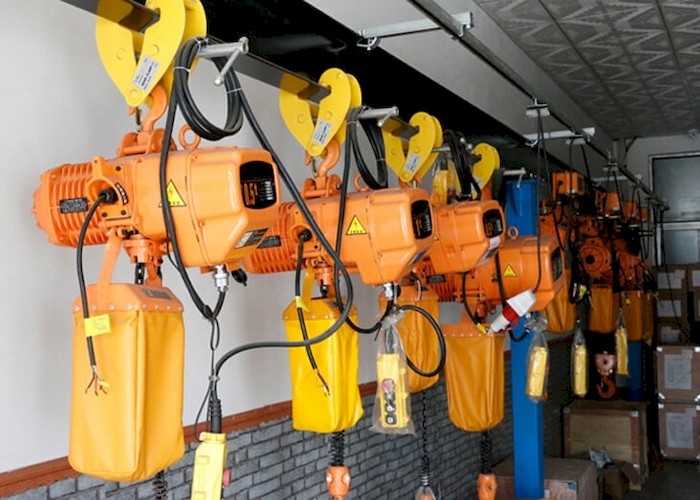

Electric Chain Hoist 1 ton 2 ton 3 ton 5 ton With Electric Motorized Trolley , Manual Geared Trolley , Manual Push And Pull Plain Trolley
Product Overviews:
Electric Chain hoist is typical unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
Loading capacity: 0.5~50ton or customized design
Lifting height: 3~130m or customized design
Lifting speed: single or double speed 0.54~11.8m/min or customized design
Power supply: 220~690V,50/60HZ,three phase or customized design
Technical Parameter:
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||
Advantages & Features of Chain Hoist:
* Electric Chain Hoist is highly effective and Compact Aluminum Body
* Electric chain hoist is light weight
* With Extremely durable and reliable Pull Rotor Motor Brake.
* Durable Push-Button Pendant for easy, one-handed operation
* Easy Maintenance, fast, easy, and trouble free
* Long-Life Friction Clutch protects hoist from damage and prevents over winding
* Suction rotary motor brake, precisely and effectively make the hoist stop running, even when low power.
* Low-noise transmission gear: intensive alloy steel are soaked in the oil so that the hoist will serve longer life.
Application:
Electric Chain Hoists are high quality products built for long service in industrial applications.
Electric chain hoist has the traits of reasonable design, advanced structure, remarkable frame, small volume, perfect appearance, big tenacity easy maintenance and durable etc. Electric chain hoist is widely used in factories, warehouse, workshop, harbour, docks, especially in raising working efficiency and improving working condition.
Electric chain hoist is widely used in Factory, workshop, warehouse, store, logistic, dock, port, freight yard, construction building, mine, etc.
Standard Safety devices are available in chain hoist series such as:
Dual Brake System equipped with Electro-Magnetic Brake and Mechanical Load Brake
Upper and Lower Limit Switch
Overload Alert
Push Button Controls
Electric Control Panel Available with Variable Frequency Drive (VFD) for all motions
Heavy-Duty Hoist Motor rated for 30-minute duty
Load Sheave / Chain Guide
Grade 80 load chain
Forged carbon steel hook with a heavy-duty hook latch
Chain Container included
Gearbox with alloy steel helical and spur gear reduction
