| Place of Origin: | China |
| Brand Name: | Santo |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 15000USD-50000USD |
| Packaging Details: | Standard export package by RO-RO ship / Bulk transport / Container packing / SKD / etc., also it can be offered according to your request. |
| Delivery Time: | 20~45 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000SETS/YEAR |
| Feature: | Truck Crane | Condition: | New |
|---|---|---|---|
| Application: | Construction , Building, Pickup | Rated Loading Capacity: | 5t-50t |
| Engine: | Optional Chassis Included | Span: | 7.5m-31.5m |
| High Light: | 20Ton Hydraulic Pickup Truck Crane,5 Ton truck with loading crane,Santo mobile hydraulic truck crane |
||

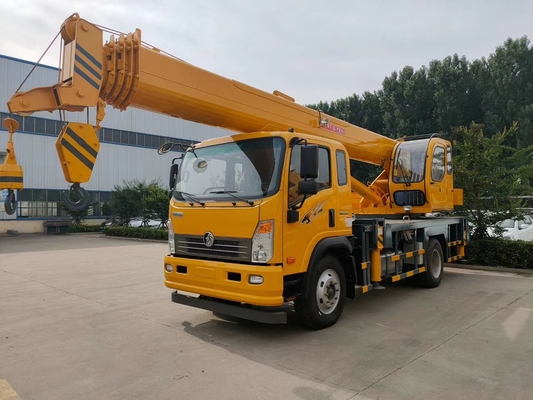

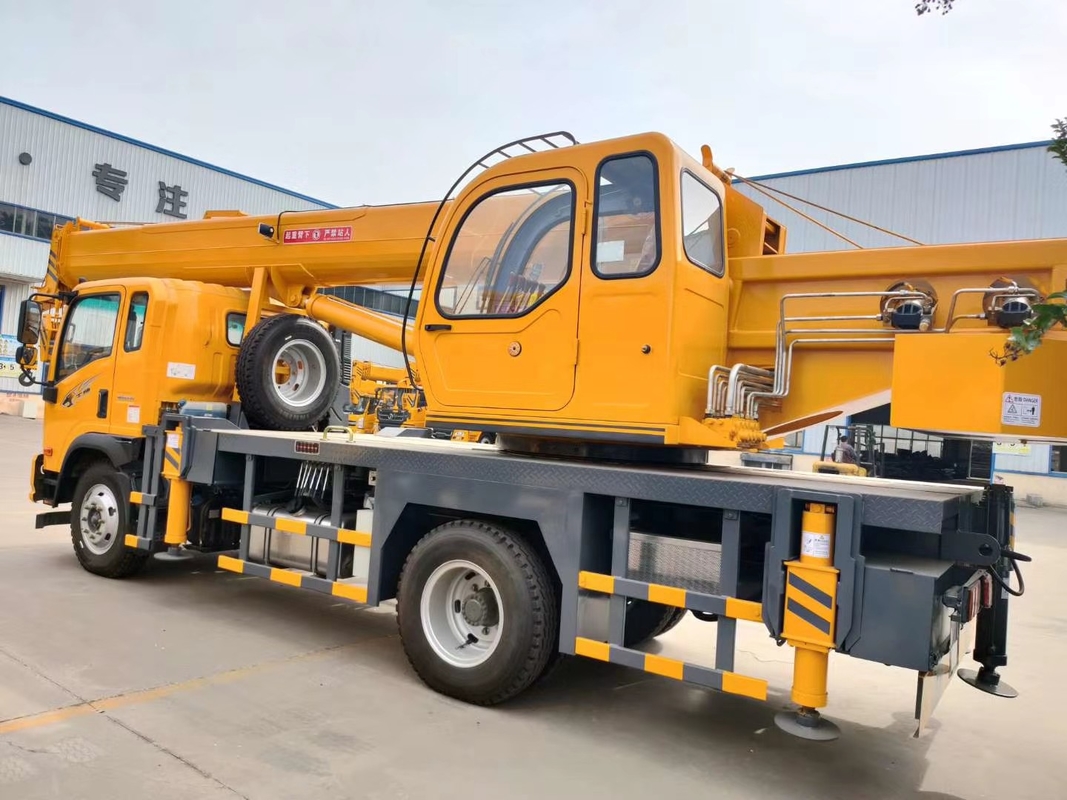

5 ton 8 ton 10 ton 16 ton 20 ton Pickup truck crane hydraulic truck crane

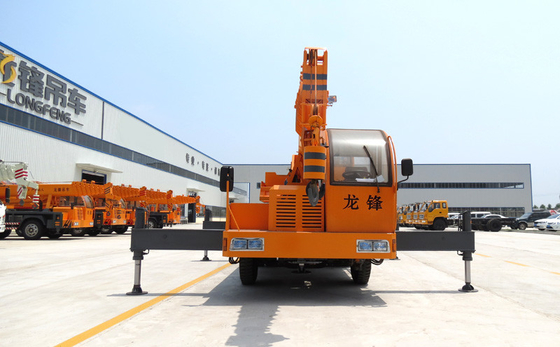

The truck crane are able to travel on highways, eliminating the need for special equipment to transport the crane. When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.
Truck cranes are mounted on truck carriers which are used primarily for lifting material on the job site. This series products are designed for ease of use along with mobility and safety.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
Parameters of standard truck crane
1. Lifting performance
| Announced model | QY3B24 | QY5B30 | QY6B36 |
QY8B40/ LQY8B38 |
QY10B42/ LQY10B42 |
QY12B45/ LQY12B45 |
QY16B52/ LQY16B52 |
LQY20B66 |
| Chassis brand | Dongfeng, T-king, BMC, Dayun, Benma, Shifeng, Wuzheng, Forland etc. as optional, or homemade | |||||||
| Max.Lifting Capacity | 3 T | 5 T | 6 T | 8 T | 10 T | 12 T | 16 T | 20 T |
| Max. boom length | 24 m | 30 m | 36 m | 40 m/38 m | 42 m | 45 m | 52 m | 66 m |
2. Chassis parameters of Dongfeng truck and T-king truck
| Chassis brand | Dongfeng | Dongfeng | Dongfeng | Dongfeng |
| Announced model | EQ5102JQZK | EQ5110JQZK | EQ5120JQZK | EQ5161JQZK |
| Engine model | 4DX23-120E4 | WP4150E40 | YC4E140-42 | YC4E160-42/ISB180-40 |
| Power(kw) | 90 | 105 | 110 | 118/132 |
| Axle base(mm) | 3800 | 3950 | 4200 | 4500/5200 |
| Tire | 825-16 | 825-20 | 825-20 | 825-20/900-20 |
| Dimension(mm) | 9940x2350x3140 | 10055x2400x3250 | 10110x2470x3350 | 11650x2480x3360 |
| Max.travel speed | 88 km/h | 75 km/h | 75 km/h | 75 km/h |
Advantages
Safety
Bilateral can switch operation, easy observation lift, safer and more humane.
High quality hydraulic components, quality assurance, strong commonality, swap is convenient, safety operation.
With rotary impact device, It is can effectively protect the security of the vehicle.
High-efficiency
Straight arm hanging cylinder with built-in line technology, synchronous expansion, boom concise appearance, scale efficiency is high.
Integral lifting structure, hydraulic system stability, high lifting efficiency.
Dependable
Use at three floating bridge structure design, effectively reduce the additional stress of the chassis frame
Counterparts for the first time using dislocation leg structure, bearing capacity is strong, leg span is the largest
Match the whole machine adopts advanced research and development technology, reasonable structure, reliable in performance.
Stabilization
Using high strength steel, compact structure, light weight, small space for installation, mechanical performance is stable.
Hexagon crane jib structure, good to neutral, bending ability.
Industry for the first time by reduction gear turbine worm type slewing mechanism, the rotary stability.
Truck Chassis
1)Scientific power matching ensure more robust power transmission and more energy-saving power systems.
2)Hydraulic steering system makes structure simple & turning easily.
3)Sophisticated chassis design and matching system makes the crane more reliable performance and lower maintenance costs.
4)Various strengthened road testing to ensure that the chassis with more reliable performance.
5)Intelligent torque limiter system,full protection for crane to ensure the operation is more accurate, more stable, more comfortable
Hydraulic System
1)Telescoping system using traffic renewable technology which dramatically improves the speed of outriggers.
2)Hydraulic parts such as balance valve, hydraulic lock are made of high-quality components which can improve reliability of system.
3)Hydraulic components’ rational layout will make maintenance more simple and convenient.
