| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | BXB, BZZ, BXD, BXN, BZD, BZN |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD3000-5000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Arm Outreach: | 3-20m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Jib Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 20t |
| Product Name: | Jib Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Jib Crane |
| Type: | Slewing Arm Jib Crane, Light Crane System | Lifting Mechanism: | Electric Hoist, Chain Hoist, Chain Block, Etc |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | BZ0.25 Swing Arm Jib Crane,BZ10 Rotating Jib Crane,Column Fixed Pillar Jib Crane |
||
Small Powered Rotation Slewing Arm Jib Crane Hoisting Equipment For Production Line With Column Pillar Fixed
Information:
BZ pillar fixed jib crane is a new generation hoisting equipment to meet the requirement of modernized production.
BZ model Jib crane is a small and medium-speed lifting equipment development recently. It has characteristics of unique structure, safe and reliable operation, high efficiency, energy-saving, time-saving, effort-saving, and flexibility. It can be operated under three dimensional environment. It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades.
Specification:
| Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
| Lift Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
| Max. Lift Height(m) | 3 | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
| Slew Angle(0) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Lift Speed (m/min) | Normal | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Slow | 1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Level Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Slewing Speed (r/min) | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Electric hoist | wire rope electric hoist or chain electric hoist | ||||||||
| Power supply | 220~440V,50/60HZ,3phase or customized | ||||||||
| Control mode | Pendent pushbutton control or remote control | ||||||||
| Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. | |||||||||
Note: sers can also select double speed, single speed chain and wire rope hoist.
Safety Devices:
1. Top quality long time bearing polyurethane materials buffer
2. Crane traveling limit switch
3. Voltage lower protection function
4. Emergency stop system
5. Current overload protection system and so on
Product Features:
1. The Jib Crane is suitable to work in the dock, warehouse, workshop etc fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.
2. This type machine is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc, the bottom of the vertical shaft is fixed on the concrete base.
3. This type machine with advantages of the simple structure, operate convenience, turning agile, wide working conditions.
Advantages:
· Easy to install and relocate. Nearly can be installed in anyplace if needed.
· Because of the its good adaptability, it can adapt with your changing needs with a little modify.
· Some kinds of this special cranes require no floor space while others can maximize the lifting height. So , with them ,the utility rate of space is unrivaled.
· The structure of this kind crane is small and flexible. It can work as a supplement for a gantry or overhead crane . By working together, the productivity of your workshop can ultimately increase to the maximum .
· If the material you need to move is light and small, launch a high-power overhead or gantry crane is a great waste. Under those circumstances, low-power crane hand goods more effectively.

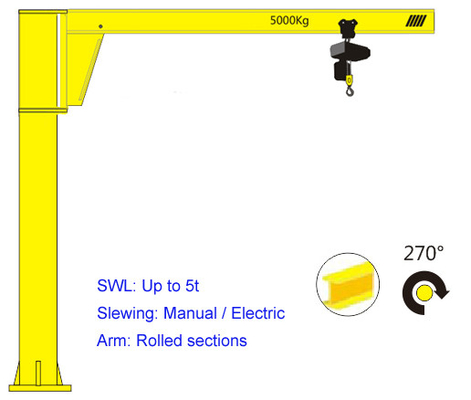

Jib crane options:

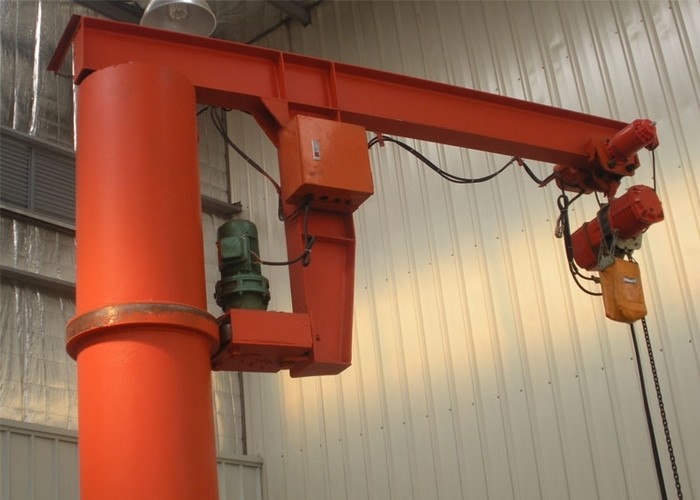

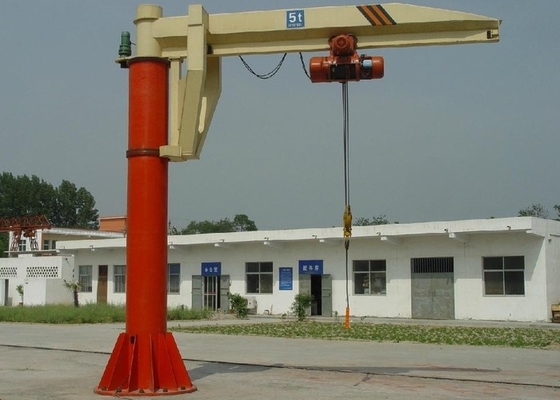

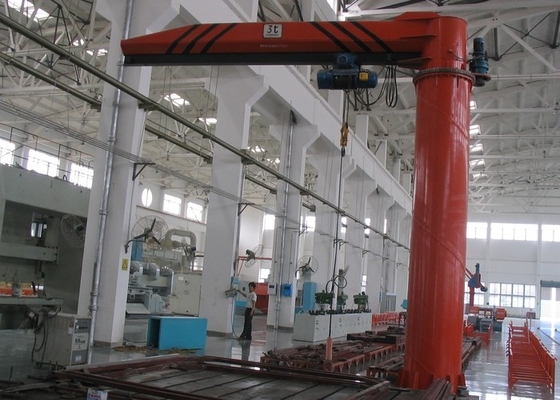

Pictures Show:
