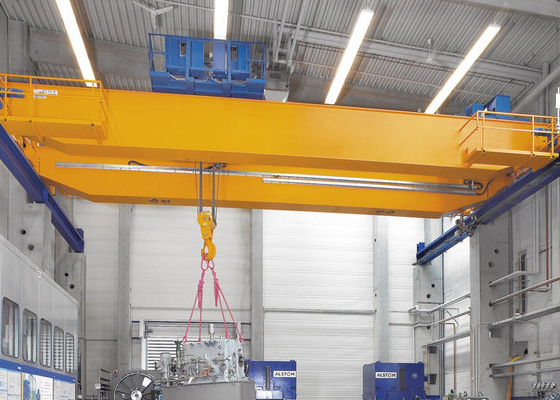

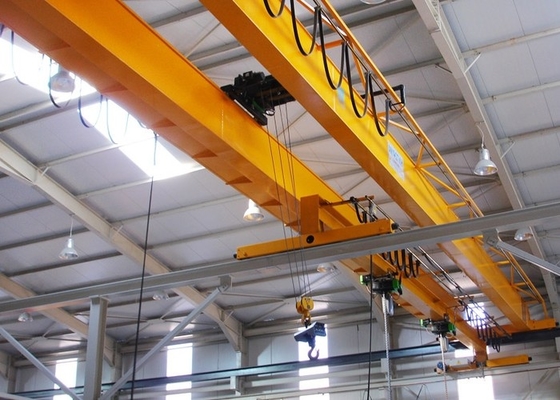

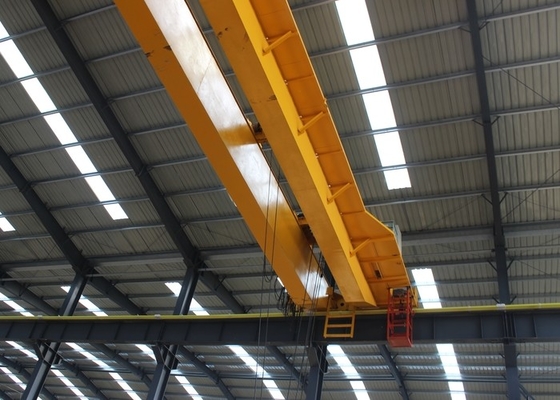

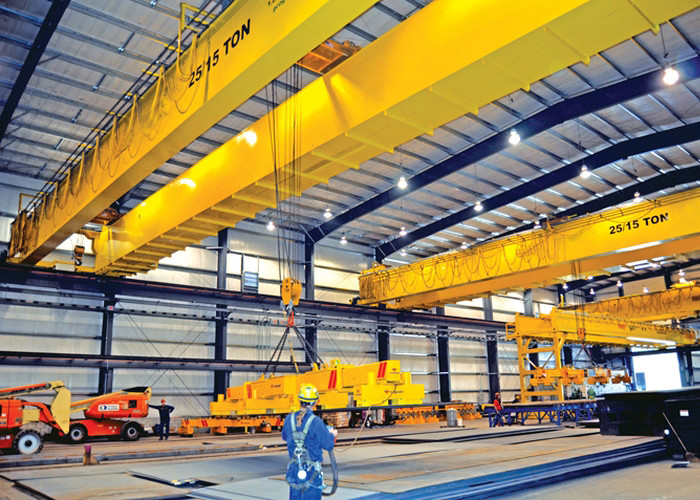

European CXTD CXSM 5T-320T Double Girder EOT Crane With Trolley Hoist

Advantage:

1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;

2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;

3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;

4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.

5. Low energy consumption and maintenance free;

6. Whole crane energy saving about 30%;

7. All-in-one transmission mechanism making it work more efficient;

8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;

9. Less and easy maintenance reduces the cost of maintenance;

10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;

Intelligent:

1. Electric anti-sway tech realize accurate positioning;

2. Advanced electric control tech turn it into a crane robot with semi-automatic control and full-automatic control;

Safety Protection:

Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.

Company Information:

Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
